產品詳情

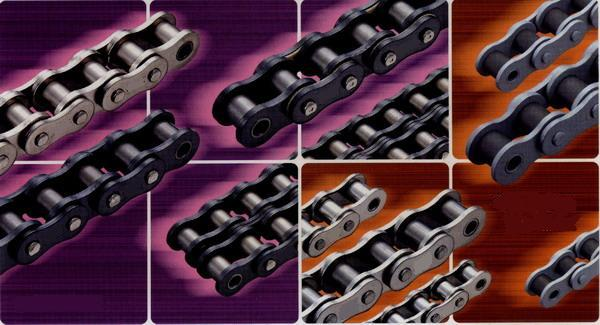

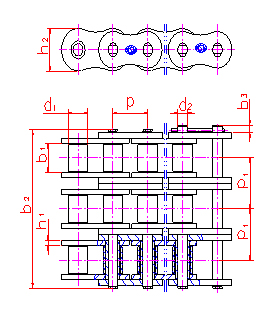

| 鏈號 Chain NO. | GB鏈號 Chain NO. | 節距 Pitch p mm | 滾子直徑 Roller Diameter d1(max) mm | 內鏈節內寬 Inner width of inner link b1(min) mm | 銷軸直徑 Pin diameter d2(max) mm | 鏈板厚度 Plate thickness h1 mm | 鏈板高度 Plate height h2 mm | 排距 Array pitch pt mm | 銷軸長度 Pin length b2 mm | 止鎖銷附加寬度 b3 mm | 拉伸載荷 Tensile load min KN | 每米重量 Weight/m |
| 80-1 | 16A-1 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | - | 32.60 | 3.6 | 55.60 | 2.76 |
| 80-2 | 16A-2 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 61.90 | 3.6 | 111.20 | 5.45 |
| 80-3 | 16A-3 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 91.20 | 3.6 | 166.80 | 8.15 |
| 100-1 | 20A-1 | 31.75 | 19.05 | 18.90 | 9.54 | 3.96 | 30.18 | - | 39.60 | 4.0 | 86.74 | 4.15 |
| 100-2 | 20A-2 | 31.75 | 19.05 | 18.90 | 9.54 | 3.96 | 30.18 | 35.76 | 75.40 | 4.0 | 173.48 | 8.20 |
| 100-3 | 20A-3 | 31.75 | 19.05 | 18.90 | 9.54 | 3.96 | 30.18 | 35.76 | 111.20 | 4.0 | 260.22 | 12.25 |
| 120-1 | 24A-1 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | - | 49.90 | 4.2 | 125.10 | 6.05 |
| 120-2 | 24A-2 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | 45.44 | 95.30 | 4.2 | 250.20 | 11.99 |
| 120-3 | 24A-3 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | 45.44 | 140.80 | 4.2 | 375.30 | 17.93 |
| 140-1 | 28A-1 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | - | 53.70 | 4.7 | 170.27 | 7.78 |
| 140-2 | 28A-2 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 102.60 | 4.7 | 340.54 | 15.44 |
| 140-3 | 28A-3 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 151.40 | 4.7 | 510.81 | 23.09 |
| 160-1 | 32A-1 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | - | 63.90 | 5.1 | 222.40 | 10.33 |
| 160-2 | 32A-2 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 122.50 | 5.1 | 444.80 | 20.50 |
| 160-3 | 32A-3 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 181.00 | 5.1 | 667.20 | 30.67 |
| 180-1 | 36A-1 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | - | 72.20 | 5.5 | 280.20 | 13.78 |
| 180-2 | 36A-2 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 138.00 | 5.5 | 560.50 | 27.70 |
| 180-3 | 36A-3 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 203.90 | 5.5 | 840.70 | 41.44 |
| 200-1 | 40A-1 | 63.50 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | - | 77.90 | 6.6 | 347.50 | 17.04 |
| 200-2 | 40A-2 | 63.50 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 149.50 | 6.6 | 695.00 | 33.83 |
| 200-3 | 40A-3 | 63.50 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 221.00 | 6.6 | 1042.50 | 50.63 |
| 240-1 | 48A-1 | 76.20 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | - | 95.10 | 7.1 | 500.40 | 24.93 |
| 240-2 | 48A-2 | 76.20 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 183.00 | 7.1 | 1000.80 | 49.54 |
| 240-3 | 48A-3 | 76.20 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 270.80 | 7.1 | 1501.20 | 74.16 |
